Transiflats

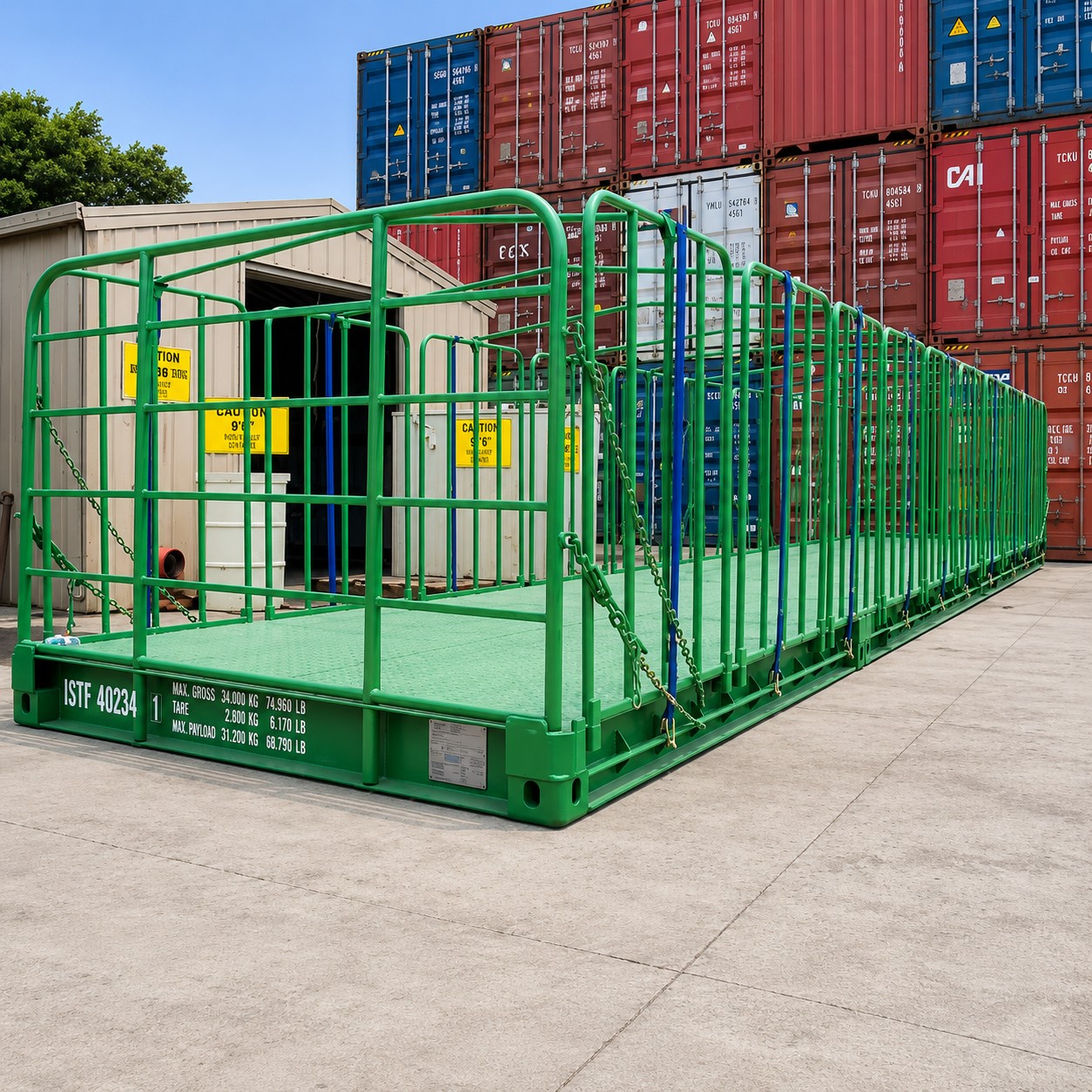

Transiflats are among the simplest and most useful of all the Royal Wolf product lines. These flat cargo carriers offer a customised gated design, depending on what type of cargo they carry, and are intermodal, so that they can be used to carry goods by truck or train.

Our standard transiflat models have a maximum payload of 28,100 kilograms. Heavy, tall or oddly-shaped loads that will not fit in a standard container can be easily accommodated on a transiflat.

Fitted with full-length tie rails, they are ideal for carrying steel bars, pipes, beams and other lengthy materials. As they lack sides and a hard roof, they are useful for transporting heavy machinery.

For more information call us on 0800 266 824.

Read More ▸

Specifications

Specifications

Length (mm) 12230
Width (mm) 2500
Height (mm) 1852
Max Gross (kg) 32000
Tare (kg) 3900
Max Payload (kg) 28100

Delivery Instructions

SIDE LOADER TRUCK DELIVERY

The side loader truck delivers the container by picking it up from the trucks tray at each end of the unit and lowering it onto the site directly next to the trucks’ tray. This method is ideal for delivery of containers that need to fit into constricted spaces. It is important to consider which way the container should be loaded onto the truck as it can only be unloaded from the right hand (drivers’) side.

  • 6m Side Loader Clearance Requirements:
  • Height – 4.5m (15ft)
  • Width – 6m (20ft)
  • Length – 10m (33ft)
  • 12m Side Loader Clearance Requirements:
  • Height – 4.5m (15ft)
  • Width – 6m (20ft)
  • Length – 16m (53ft)

CRANE TRUCK DELIVERY

This delivery method is used when neither a tilt tray or side loader truck can access the site. Crane truck delivery allows for containers to be delivered over obstructions such as fences.
