Our standard range available includes:

Size	Power	Volts	Amps	Plug
20ft	Single phase	240	15	3 pin
20ft	Three phase	500	32	PDL 4 pin straight
40ft	Three phase	500	32	PDL 4 pin straight
40ft HC	Three phase	500	32	PDL 4 pin straight

Temp Ranges:	Single Phase (-18C to +13C degrees)
	Three phase (-24C to +13C degrees)

10ft Refrigerated Container

Internal		External
Length	2.28m	2.99m
Width	2.29m	2.44m
Height	2.59m	2.89m

20ft Refrigerated Container

Internal		External
Length	5.19m	6.06m
Width	2.29m	2.44m
Height	2.59m	2.90m

SIDE LOADER TRUCK DELIVERY

The side loader truck delivers the container by picking it up from the trucks tray at each end of the unit and lowering it onto the site directly next to the trucks’ tray. This method is ideal for delivery of containers that need to fit into constricted spaces. It is important to consider which way the container should be loaded onto the truck as it can only be unloaded from the right hand (drivers’) side.

6m Side Loader Clearance Requirements:
Height – 4.5m (15ft)
Width – 6m (20ft)
Length – 10m (33ft)

12m Side Loader Clearance Requirements:
Height – 4.5m (15ft)
Width – 6m (20ft)
Length – 16m (53ft)

CRANE TRUCK DELIVERY

This delivery method is used when neither a tilt tray or side loader truck can access the site. Crane truck delivery allows for containers to be delivered over obstructions such as fences.

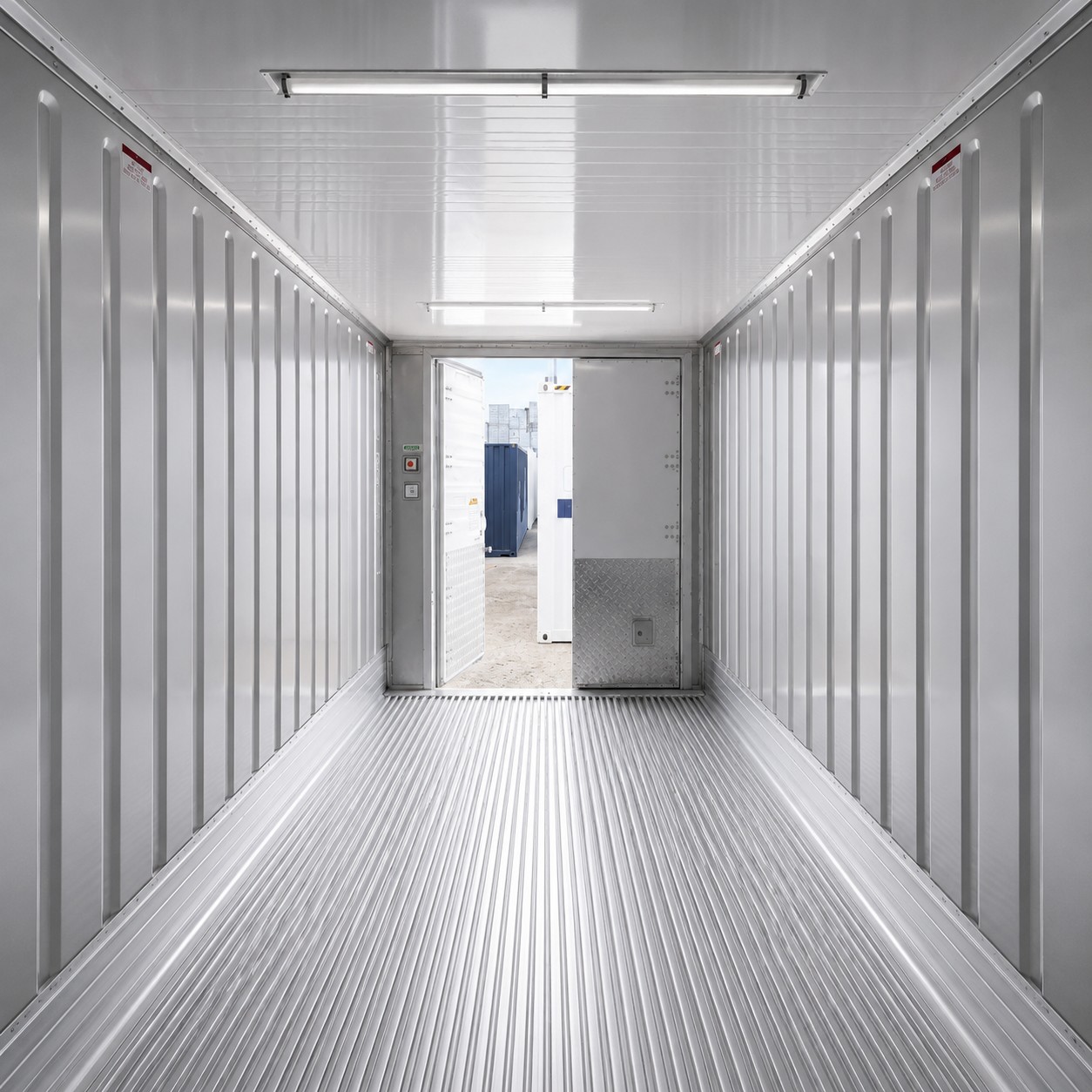

Refrigeration Containers for Events
