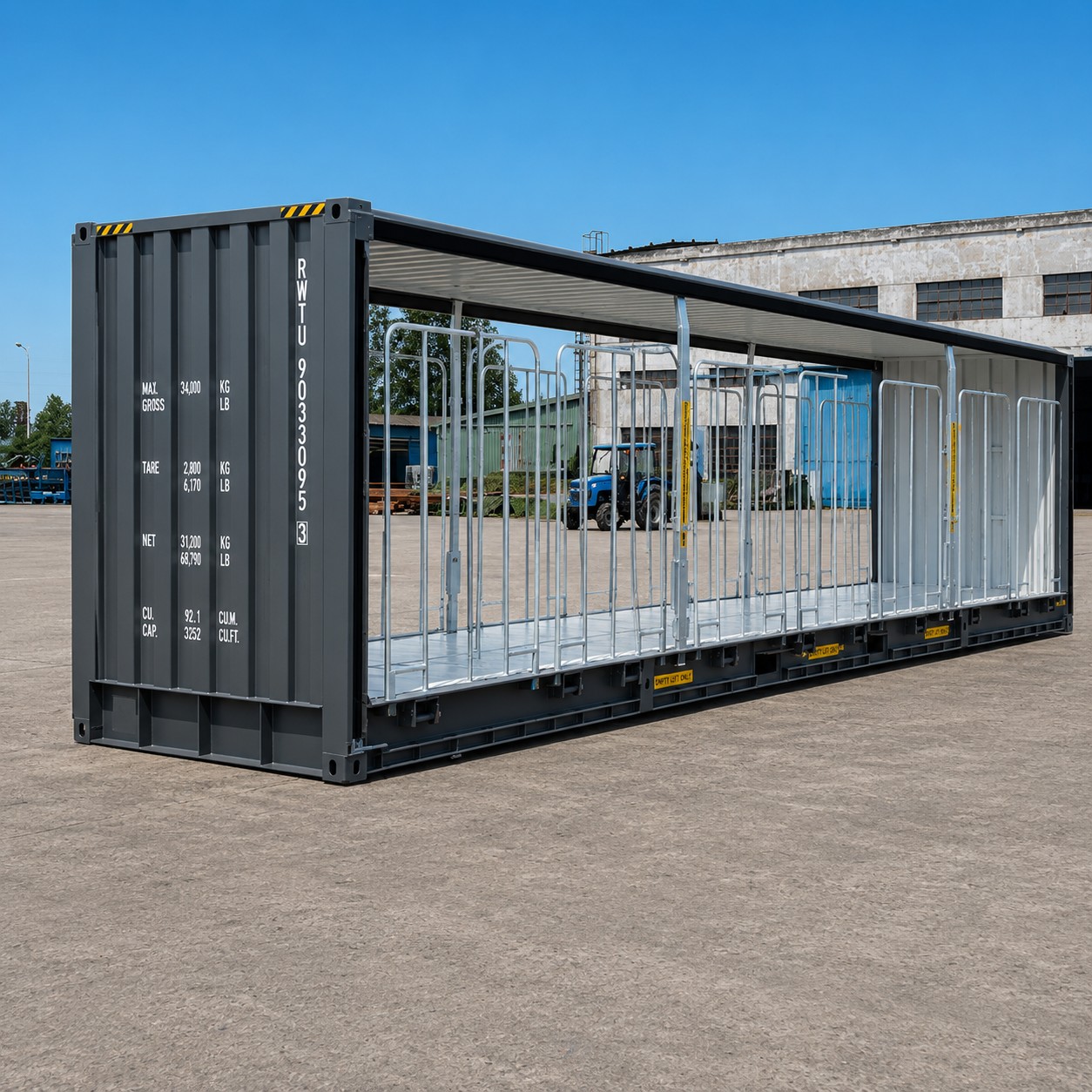

Rail Curtainside Containers

Royal Wolf have developed a range of products suitable for the cartage of goods where the client requires ease of loading and unloading of either palletised or over length cargo.

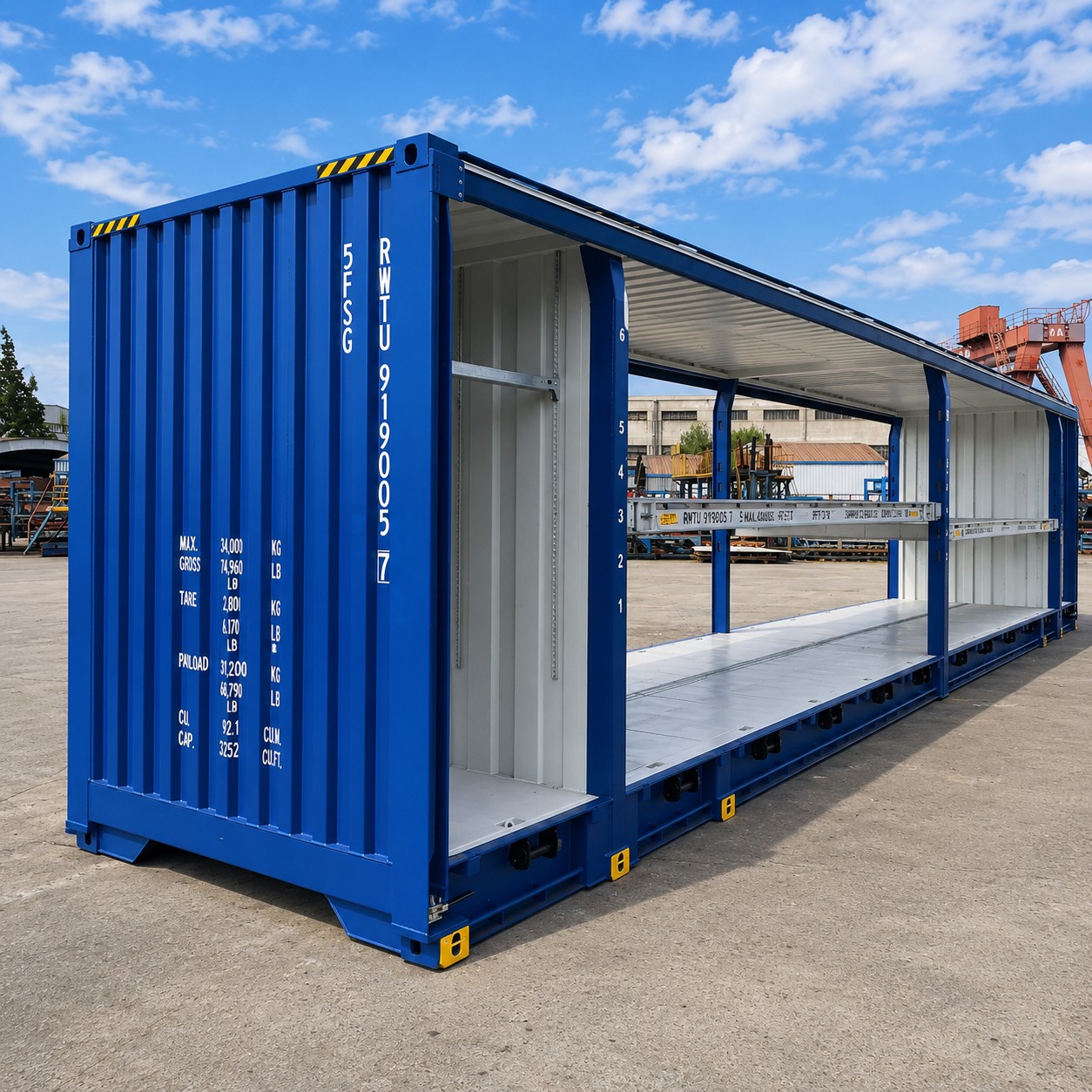

These containers come in a range of sizes and can be fitted with mezzanine decks to allow for loading both above and below. The curtainside container is fully intermodal, meaning it can be top lifted and is suitable for loading pallets on both the bottom and mezzanine floor. In addition, they are fitted with suspended gates to meet WHS requirements.

Features:

  • Heavy Duty design with strengthened end walls
  • Mechanically Automated Mezzanine decks – height setting can be adjusted and locked by one person without
  • leaving forklift
  • Lightweight aluminium decks
  • Low tare = higher payload
  • Buckle-less Pronto Curtains
  • 12 x Ratchet Style Load Binders along each side rail
  • In-Floor tool boxes
  • Recessed lashing rings in floor
  • Hanging Gates
  • Curtain Pole support tab

Curtain side container hire and sale options are available. For more information request a quote below, or call us on 0800 266 824.

Read more
Read less

Specifications



 Specifications 40ft 48ft
External Length (mm) 12192 14746
External Width (mm) 2500 2500
External Height (mm) 2997 2997
Internal Length (mm) 11887 1247/12018/1247
Internal Width (mm) 2376 2376
Internal Height (mm) 2644 2644
Max Gross (kg) 30480 35000
Tare (kg) 6510 9390
Max Payload (kg) 23970 25610
Cubic Capacity (m3) 72.5 90

Delivery Instructions

SIDE LOADER TRUCK DELIVERY

The side loader truck delivers the container by picking it up from the trucks tray at each end of the unit and lowering it onto the site directly next to the trucks’ tray. This method is ideal for delivery of containers that need to fit into constricted spaces. It is important to consider which way the container should be loaded onto the truck as it can only be unloaded from the right hand (drivers’) side.

  • 6m Side Loader Clearance Requirements:
  • Height – 4.5m (15ft)
  • Width – 6m (20ft)
  • Length – 10m (33ft)
  • 12m Side Loader Clearance Requirements:
  • Height – 4.5m (15ft)
  • Width – 6m (20ft)
  • Length – 16m (53ft)

CRANE TRUCK DELIVERY

This delivery method is used when neither a tilt tray or side loader truck can access the site. Crane truck delivery allows for containers to be delivered over obstructions such as fences.
