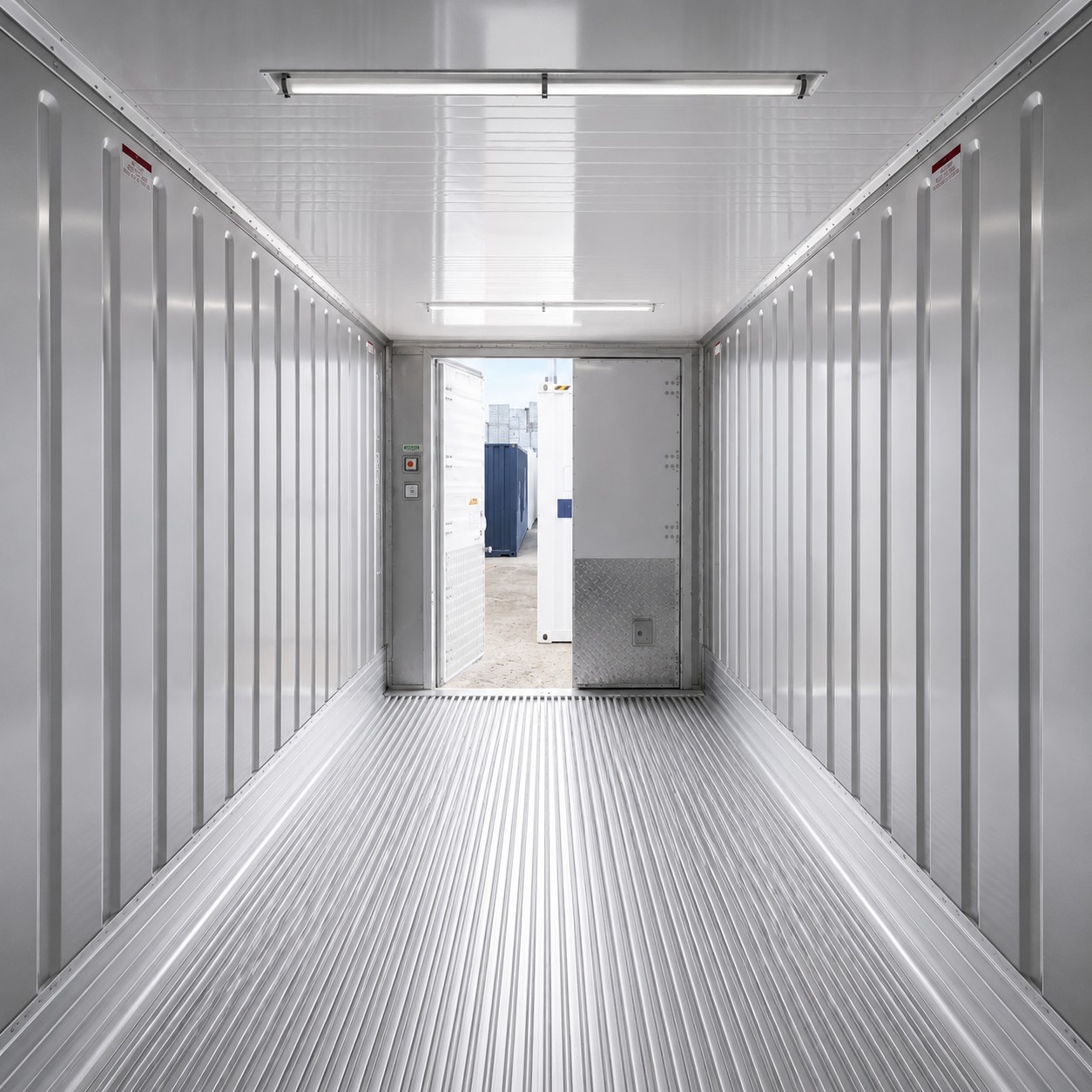

Cool Rooms for Cold Storage

Royal Wolf offers a range of Chillers, Cool Rooms & Refrigerated Storage products to satisfy the ever changing needs of companies requiring cold storage. Our product range comes in a variety of sizes and offer a portable refrigerated storage solution that is robust, safe and secure. Whether you require cold storage for a one day function, portable storage for a national tour or permanent storage at your premises, Royal Wolf can assist with your cool room needs.

Royal Wolf offer optional features with the Chillers, Cool Rooms and Refrigerated Storage range including alarms, digital displays and Ezi Enta doors (single door enabling easy access as it eliminates the need to open the double doors).

For more information, call 0800 266 824.

Read More ▸

Specifications

Our standard range available includes:

Size Power Volts Amps Plug
20ft Single phase 240 15 3 pin
20ft Three phase 500 32 PDL 4 pin straight
40ft Three phase 500 32 PDL 4 pin straight
40ft HC Three phase 500 32 PDL 4 pin straight
Temp Ranges: Single Phase (-18C to +13C degrees)
  Three phase (-24C to +13C degrees)

20ft Refrigerated Container

Internal   External
Length 5.45m 6.06m
Width 2.27m 2.59m
Height 2.27m 2.59m

20ft Pallet Wide Refrigerated Container

Internal    External
Length 5.45m 6.06m
Width 2.39m 2.50m
Height 2.57m 2.90m

40ft Refrigerated Container

Internal    External
Length 11.59m 12.19m
Width 2.29m 2.44m
Height 2.59m 2.90m

Delivery Instructions

SIDE LOADER TRUCK DELIVERY

The side loader truck delivers the container by picking it up from the trucks tray at each end of the unit and lowering it onto the site directly next to the trucks’ tray. This method is ideal for delivery of containers that need to fit into constricted spaces. It is important to consider which way the container should be loaded onto the truck as it can only be unloaded from the right hand (drivers’) side.

  • 6m Side Loader Clearance Requirements:
  • Height – 4.5m (15ft)
  • Width – 6m (20ft)
  • Length – 10m (33ft)
  • 12m Side Loader Clearance Requirements:
  • Height – 4.5m (15ft)
  • Width – 6m (20ft)
  • Length – 16m (53ft)

CRANE TRUCK DELIVERY

This delivery method is used when neither a tilt tray or side loader truck can access the site. Crane truck delivery allows for containers to be delivered over obstructions such as fences.

Click to download


Cool Rooms for Cold Storage Download
